Disc Feeder

Suitable Screw Size:M0.5-M2

The Danikor Disc Screw Feeder is an exceptionally reliable machine. It uses a rotating disk to position one fastener at a time in a precise location for easy retrieval. Fasteners can be picked up using either a magnet or vacuum. This feeder is designed specifically for micro and mini screws in the electronics industry, ensuring zero jams.

Product Advantages

No Screw Jamming

? Patented products, stable material supply, improve production efficiency.

Low Failure Rate

? Intelligent fault alarm, easy maintenance and replacement.

Wide Application Range Of LDR

? Screws with LDR ≤ 1 can also be driven stably and efficiently.

Lack Of Material Detection

? Standard material shortage sensor,early warning in case of material shortage, to ensure the continuity of the feeding process and uninterrupted production.

Screw Length Detection (optional)

? Prevent mixing and improve product qualification rate.

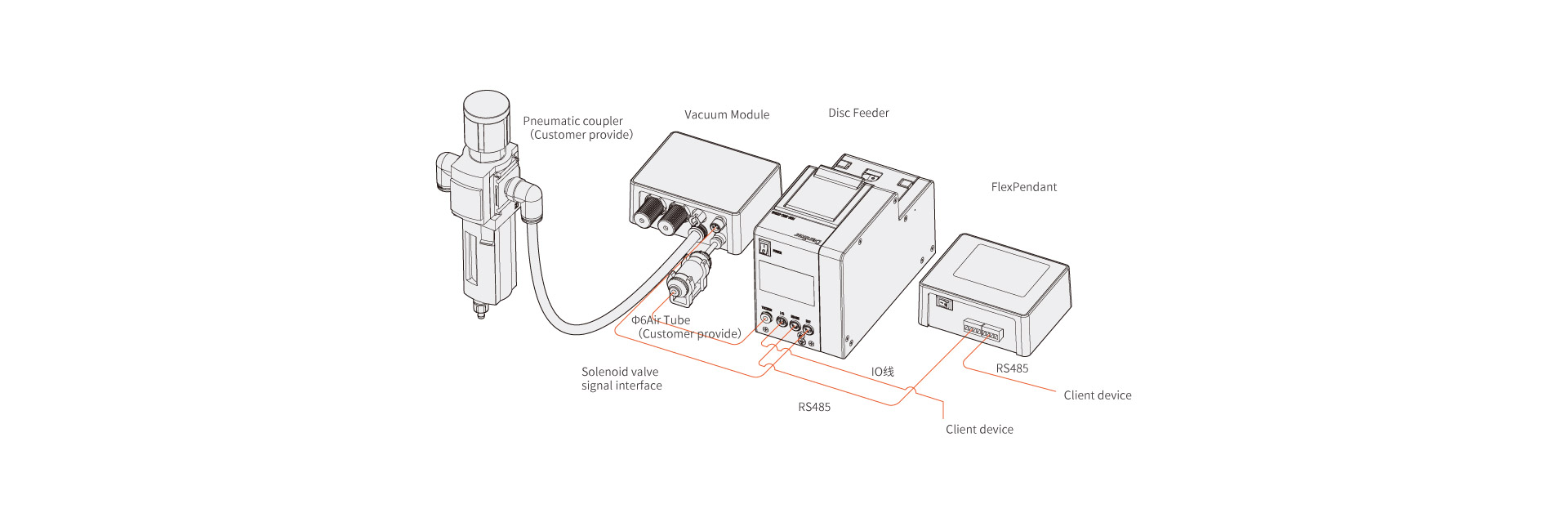

Product Structure

Product Parameters

Model	FDH-SDC-70ML-BCG6- 00D0000000-T00	FDH-SDC-70ML-BCG6- 00D0000L00-T00	FDH-SDC-120ML-C1- G6-00D0000000-T00	FDH-SDC-120ML-C1-G6-00D0000L00-T00
Channel type	Single channel
L * W * H/mm	175x90x133		159x82x110
Weight/Kg	1.9		1.2	1.3
Capacity/ml	70		120
Rated air pressure/Mpa	0.5-6
Power source V/Hz	Equipment voltage DC24V (IO or 485 access device provides power supply)
Rated power/W	24
Air consumption m3/min	0.09
Inlet pipe diameter/mm	8
I/O m	2
Shortage function	○	○	○	○
Screw Length Detection	-	○	-	○
Detection accuracy/mm	-	±0.2	-	±0.2
FlexPendant	Optional
Vacuum Module	Optional Muffler type Or quick plug

Type	Model	L * W * H mm	Category	Cable	Vacuum Module
Vacuum Module	OFD-SVM-00-V1-M	102x80x40	OFD-SVM-00-V1-M	Including 2m three-core communication line	1
Vacuum Module	OFD-SVM-00-V1-Q	102x80x40	OFD-SVM-00-V1-Q	Including 2m three-core communication line	1
FlexPendant	OFD-SFP-00-V3	102x86x40	OFD-SFP-00-V3	Including 2m RS485 four-core wire	-

* The above data is the measured value in the laboratory.

Feeder-scope Of Application For Screws

Screw feeder model	Thread diameter M	Screw length L	Cap diameter D	Cap thickness T	LDR
FDH-SDC-70ML	1~2mm	Max. 7.5mm	Max. 7.5mm	0.15~2mm	LDR：(L+T)/D≤1
FDH-SDC-120ML	0.5~1.6mm	Max. 5.5mm	Max. 5.5mm	0.15~2mm	LDR：(L+T)/D≤1

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
